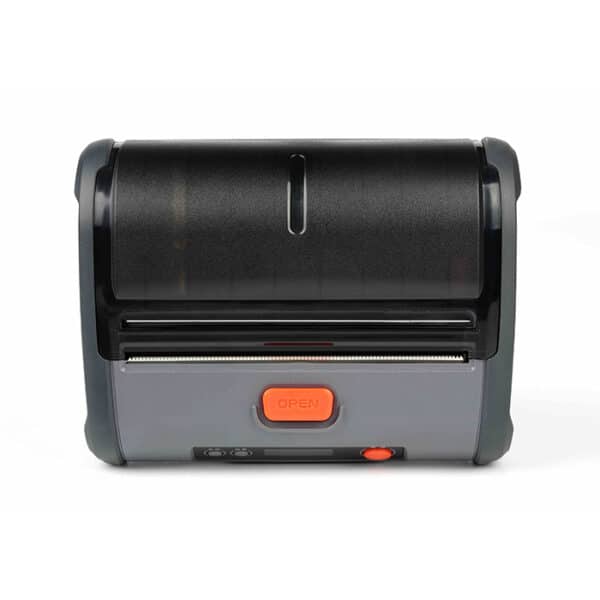

CC4 Mobile Label Printer 110mm

Features:

CC4 is a very good mobile wireless thermal printer, support blue tooth or Wifi connection, support both thermal paper and label with sticker printing; widely used in logistics, warehouse, retail and other printing application scenarios.

support Bluetooth＋WiFi connection
Width can be adjusted from 46mm-110mm
support label sticker ＆ thermal receipt paper printing
support charging your smartphone as a power bank
support fast charging
support 8h working
Type-C connection port, easy and convinient

Parameter:

Physical Characteristics

Dimensions	168mm113mm68mm
Weight	about 500g(Without Paper Roll)
Battery	Richargeable, 7.4V, 2600mAh; support 80meters Printing
Interfaces	USB
Flash	Maximum 128MB

Communication

Bluetooth	2.1/4.0(BLE)
USB	support

Developing Environment

Command Set	ESC/POS, CPCL
Driver	Windows PC/Windows CE/Mobile/Android
Software	EasyPrint

Barcoding

Not applicable

User Environment

Operating Temp.	-10℃ +50 ℃
Storage Temp.	-20 ℃~+70 ℃
Humidity	5% RH – 95% RH non condensing

RFID

Not applicable

Other Functions

Print Method	Direct Thermal
Resolution	203dpi
Paper Width	46mm-110mm
Print Width	104mm (Max)
Print Speed	70mm/s (Max)
Media	Receipt/Label
Media Size	(46mm-110mm)/ Φ56mm(Max)
OLCD Indicator	Yes
Button/Indicator	Parameter Setting
Media Detecting	Black Mark(Double)/Label Gapl/Paper-out
Alarm	Battery-Low/Case-Open/Paper-out
Restoration	Yes
Case-Opening	One-Button-Pushing
Power Saving	Yes
Over-Heat Protection	Yes
Type	Thermal Paper/Label
Width	46mm-110mm
Diameter	56mm (Max)
Thickness	50μm-180μm
