IMPINJ E310 chip
ISO18000-6C protocol, fast identification, excellent multi-tag reading
strong anti-collision, automatic reading
Cost-effective and long range RFID reading
Widely used in asset management, warehouse inventory, vehicle parking system
| Dimensions | 225*225*56mm |
| Weight | TBC |
| Colour | White |
| Interfaces | 10/100 Base-T Ethernet interface, 232/485 serial port optional |
| Power supply | DC 12V, 3A power adapter (single 232 serial port communication is 5V, 2A power adapter) |
| Communication way | T Ethernet, RFID; optional: RS232 (485) |
| SDK | support |
| Operating Temp. | -20℃ +60 ℃ |
| Storage Temp. | -20 ℃~+70 ℃ |
| Humidity | 5% RH – 95% RH non condensing |
| RFID chip | E310 IMPINJ |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz (customizable) |
| Baud rate | 9600~921600bps |
| Protocol | ISO18000-6C（EPC global UHF Class 1 Gen 2 ） |
| Read range | ≥10meters |
| Read Speed | ≥400tags/s |
| Tag cache | 1000tags |
| Output power | 5-30 dBm（+/-1.0dBm adjustable） |
| Antenna | built-in 9dBi antenna |
| Antenna requirements | VSRW<1.5 / 50 Ώ |
Not Applicable

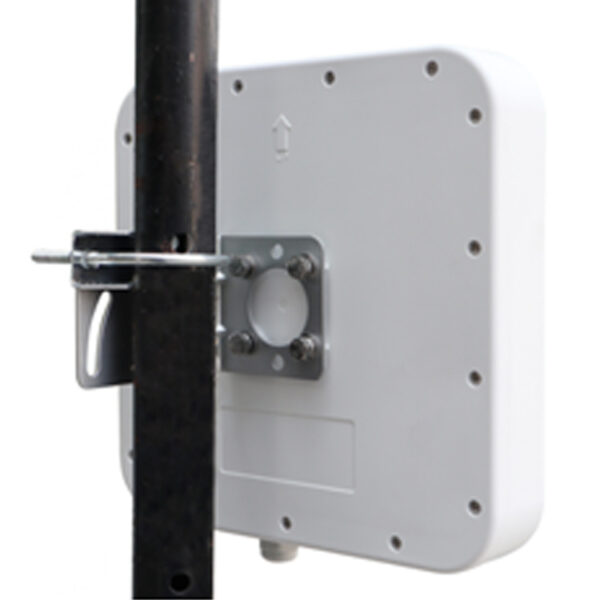

| Optional | holder |
