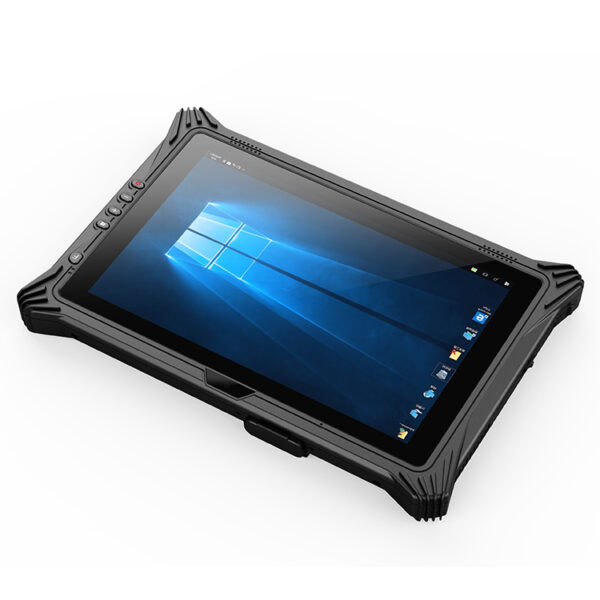

EM10 10.1-inch Windows Rugged Tablet

Category Windows Rugged Tablet PC

Features:

EM10 is with Windows 11 OS, large RAM/ROM, powered by Intel® Celeron® processor, the EM10 brings greater computing and GPU performance with reduced power consumption, ideal for situations of complex tasks processing.

Multiple accessories options like RJ45, RS232, Type C, Mini HDMI…
Brilliant 10.1 inch multi-touch screen
Two batteries, long standby time
Real-time monitoring temperature, intelligent active cooling
Robust security, with fingerprint unlock and TPM 2.0 data security

Parameter:

Physical Characteristics

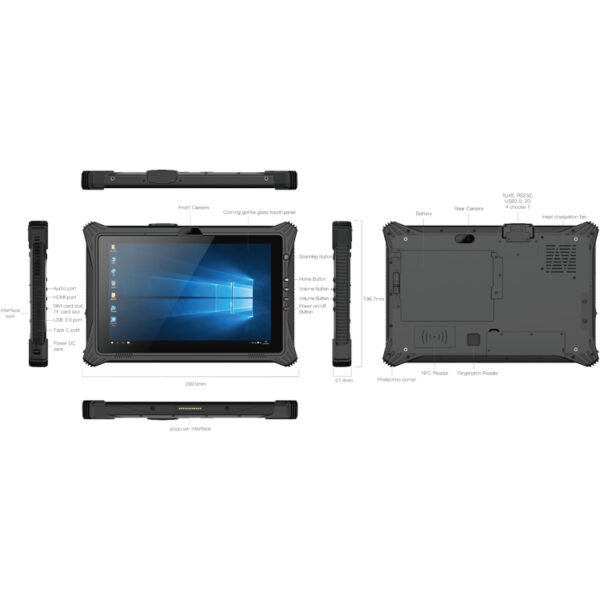

Dimensions	289.9196.727.4mm
Weight	about 1140g (including battery) (N.W.; depends on configuration)
CPU	Intel® Celeron® Processor N5105
RAM+ROM	8G+128GB (Ram option: 16GB)
Display	10.1 inch IPS 16:10, 1200×1920, 700nits; 10 point G+G capacitive touch screen
Colour	Black
Battery	7.4V/5000mAh, Removable Li-polymer battery, endurance 5hrs; Built-in Li-polymer battery 7.4V/700mAh
Camera	Front 5.0MP Rear 8.0MP
Interfaces	USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 1.4a x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1
Keypad	5 keys (power key, home, scanning, volume + -)

Communication

WWAN(Optional)	LTE FDD: B1/B3/B7/B8/B20 LTE TDD: B40 WCDMA: B1/B5/B8 GSM: B3/B8
WLAN	802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth	Bluetooth 5.0
GNSS	Built-in GPS+Glonass

Developing Environment

Operating System	Windows 11
SDK	Emagic Software Development Kit

Barcoding

1D & 2D Barcode Scanner

Optional

User Environment

Operating Temp.	-20 °C ~ 60 °C
Storage Temp.	-30 °C ~ 70 °C
Humidity	5% RH – 95% RH non condensing
Drop Specification	1.22m
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65 certified, MIL-STD-810G certified

RFID

NFC	13.56 MHz; Built-in, ISO/IEC 14443A; Optional

Other Functions

Extension modules

DB9 (RS232) x 1/ USB 2.0 x 1/ RJ45 (10/100M) x 1 (optional)

Accessories

Standard	USB cable1+ adapter1 + battery*1
Optional	Docking Charger/Hand-strap/Car charger/carry handle/Vehicle Mount
