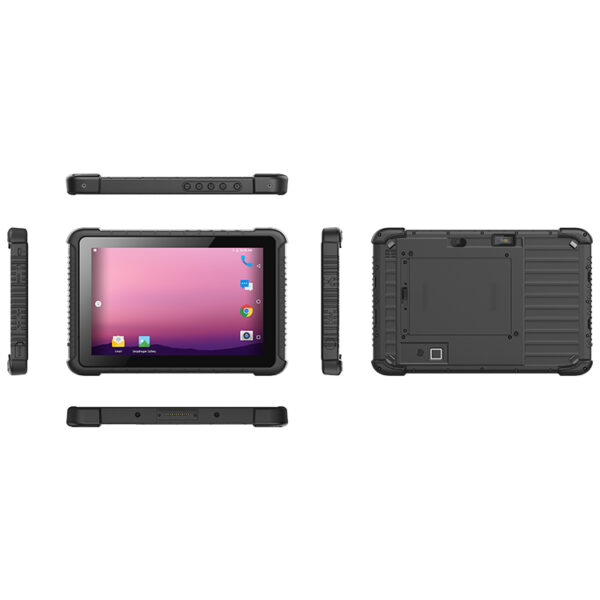

EM16 10.1-inch Industrial Tablet Android 10

Category Android Rugged Tablets

Features:

EM16 is a popular rugged tablet with optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes, rich interfaces options, IP65 high protection level, in accordance with MIL-STD-810G; applicable for vehicle operation, medical and other industrial applications.

10000mAh battery, 10 hours of machine endurance
Rear 13 MP auto focus camera, easy to collect image and video information
Support 1D/2D, NFC and other functional modules for free selection
Full accessories options

Parameter:

Physical Characteristics

Dimensions	280.418726.6mm
Weight	about 1014g (including battery) (N.W.; depends on configuration)
CPU	ARM (OCTA Core), 2.0GHz
RAM+ROM	4G+64GB
Display	10.1 inch IPS 16:10, 1200×1920; 10 point G+G capacitive touch screen Corning® Gorilla® Glass
Colour	Black

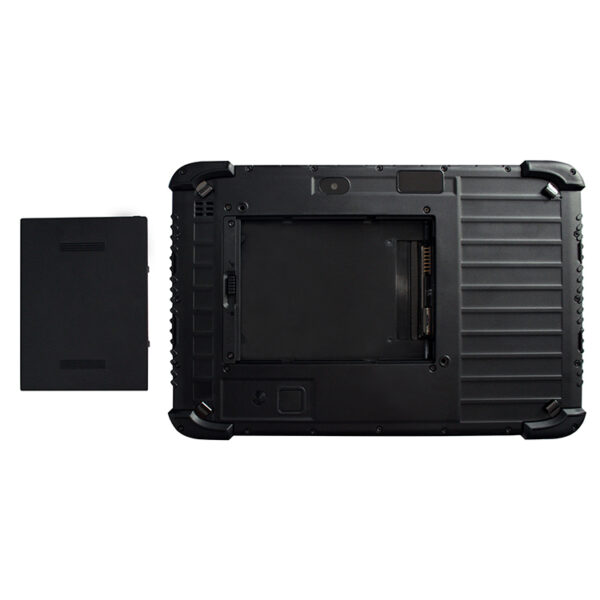

Battery	3.7V/10000mAh, Li_polyment, removeable, endurance 10hrs
Camera	Front 5.0MP Rear 13.0MP
Interfaces	HDMI 1.4a x 1, USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, 12pins Pogo Pin x 1, DB9 RS232 x 1, RJ45 x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1
Power	AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
Keypad	5 keys (power key, scanning, volume + -, custom buttton)
Sensors	3D accelerator,E-compass,proximtity sensor,Light sensor

Communication

WWAN (Optional)	CMCC 4M：LTE B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8
WLAN	WiFi 802.11 a/b/g/n/ac (2.4G+5G)
Bluetooth	Bluetooth 4.1
GNSS	Built-in GPS+Glonass

Developing Environment

Operating System	Android 10
SDK	Emagic Software Development Kit
Language	Java

Barcoding

1D & 2D Barcode Scanner

Optional

User Environment

Operating Temp.	-20 °C ~ 60 °C
Storage Temp.	-30 °C ~ 70 °C
Humidity	5% RH – 95% RH non condensing
Drop Specification	1.22m
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65 certified, MIL-STD-810G certified
