EM17 10.1-inch Windows Rugged Tablet

Category Windows Rugged Tablet PC

Features:

EM17 is a rugged windows tablet PC with Intel® Celeron® N5100 processor, and a CPU speed reaches 2.8GHz, provides an excellent performance, powerd by the 4GB RAM and Windows 11 Pro operating system, a perfect choice for your application or as an embedded device.

Brilliant 10.1 inch multi-touch screen
Multiple interfaces options, and with USB 3.0 fast data transfer port
Advanced wireless connectivity, support 2.4G/5G, WIFI, BT5.0 LTE etc.
Removeable 5000mAh battery, support fast charging
Support optional 2D imager barcode scanning capabilities

Parameter:

Physical Characteristics

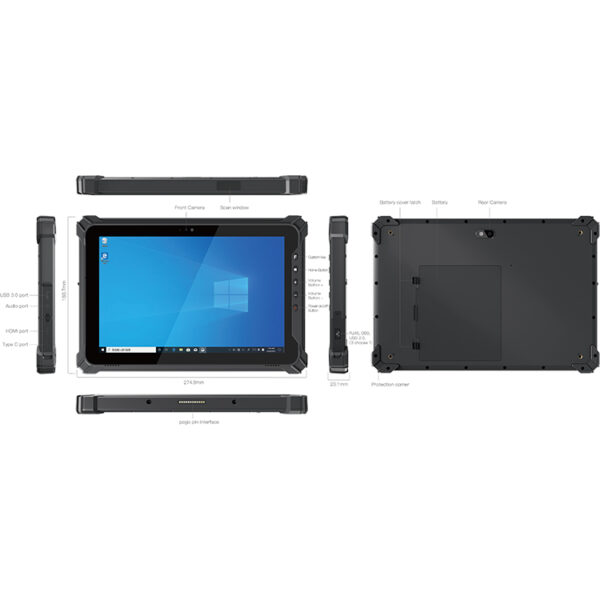

Dimensions	274.9188.723.1mm
Weight	about 1140g (including battery) (N.W.; depends on configuration)
CPU	Intel® Celeron® Processor N5100
RAM+ROM	4G+64GB (Ram option: 8+128GB)
Display	10.1 inch TFT 16:10, 1920×1200; 10 point capacitive touch screen
Colour	Black
Battery	7.6V/5000mAh, Removable Li-polymer battery, endurance 6hrs
Camera	Front 5.0MP Rear 8.0MP

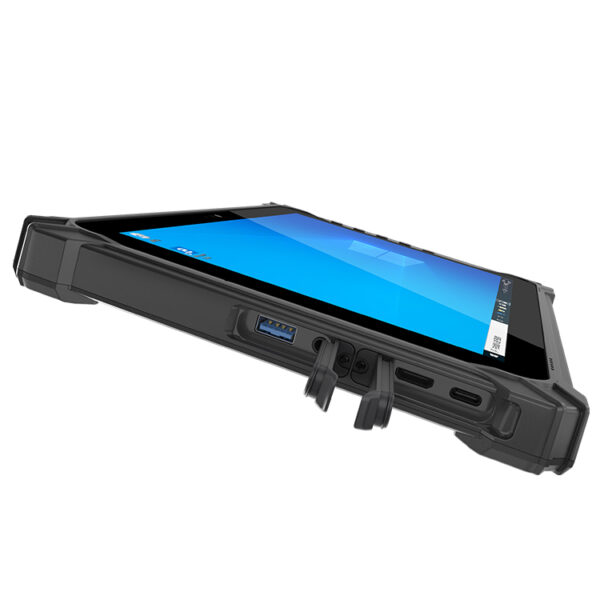

Interfaces	USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card, TF Card (Three in one card holder), HDMI 1.4a x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1
Keypad	5 keys (power key, home, custom key, volume + -)

Communication

WWAN (Optional)	LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40 WCDMA: B1/B5/B8, GSM: B3/B8
WLAN	802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth	Bluetooth 5.0
GNSS	Built-in GPS+Glonass

Developing Environment

Operating System	Windows 11; Optional Windows 10
SDK	Emagic Software Development Kit

Barcoding

1D & 2D Barcode Scanner

Optional

User Environment

Operating Temp.	-20 °C ~ 60 °C
Storage Temp.	-30 °C ~ 70 °C
Humidity	5% RH – 95% RH non condensing
Drop Specification	1.22m
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65 certified, MIL-STD-810G certified
