EM87 is a rugged windows tablet PC 8inch with Intel® Celeron® N5100 processor, and a CPU speed reaches 2.8GHz, provides an excellent performance, suitable for end user’s application or as an embedded device.

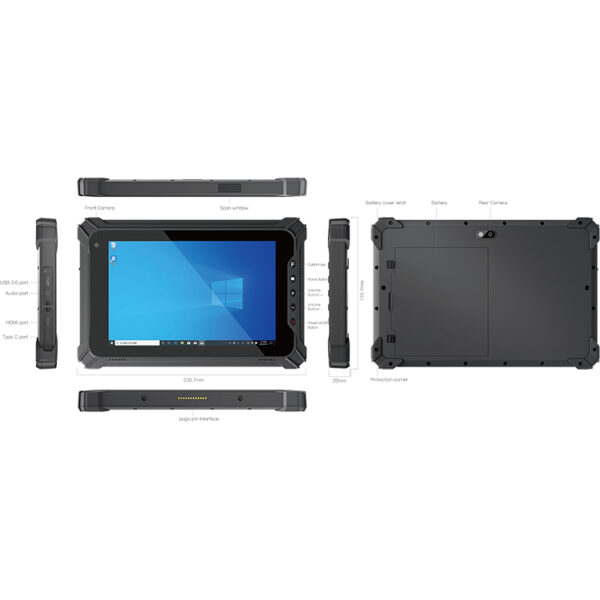

| Dimensions | 236.7*155.7*20mm |
| Weight | about 910g (including battery) (N.W.; depends on configuration) |
| CPU | Intel® Celeron® Processor N5100 |
| RAM+ROM | 4G+64GB (Ram option: 8+128GB) |
| Display | 8 inch TFT 16:10, 1920×1200, 550nits; 5 point capacitive touch screen |
| Colour | Black |

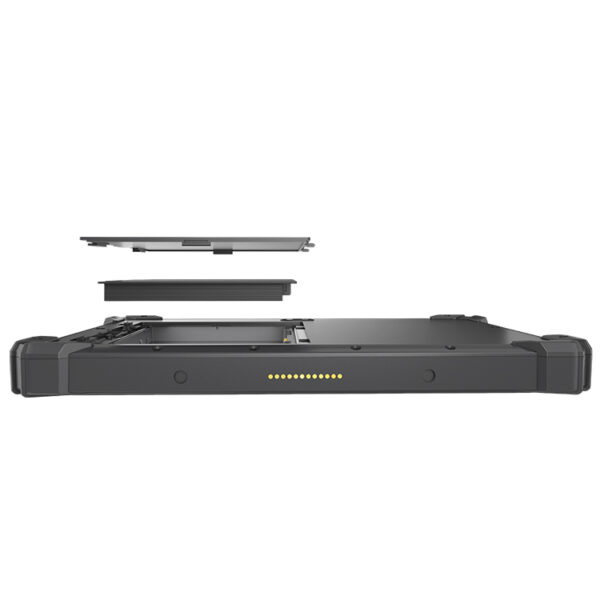

| Battery | 7.6V/5000mAh, Removable Li-polymer battery, endurance 6hrs |
| Camera | Front 5.0MP Rear 8.0MP |
| Interfaces | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card, TF Card (Three in one card holder), HDMI 1.4a x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Keypad | 5 keys (power key, home, custom key, volume + -) |
| WWAN | LTE FDD: B1/B3/B7/B8/B20，LTE-TDD: B40 WCDMA: B1/B5/B8，GSM: B3/B8 |
| WLAN | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | Bluetooth 5.0 |
| GNSS | Built-in GPS+Glonass |
| Operating System | Windows 10 |
| SDK | Emagic Software Development Kit |
| Operating Temp. | -20 °C ~ 60 °C |
| Storage Temp. | -30 °C ~ 70 °C |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | 1.22m |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP65 certified, MIL-STD-810G certified |
| NFC | Optional, support ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, ISO/IEC mifare protocol |
N/M
| Standard | USB cable*1+ adapter*1 + battery*1 |
| Optional | Docking Charger/Hand-strap/Car charger/TP Resist film/Vehicle Mount |
