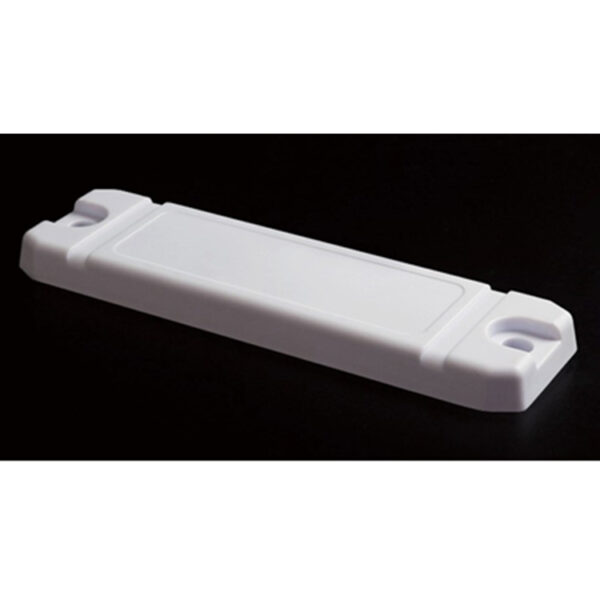

| Dimensions | 105.0×30.0mm, Hole: D5.2mmx2; thickness: 7.5mm |
| Weight | About 27g |
| Material | ABS+PC |
| Colour | White or other color customizable |
| Mounting Methods | Adhesive, screw, binding |
| RFID | RFID |
| SDK | support |
| IP Rating | IP68 |
| Operating Temp. | -25°С to +85°С |
| Storage Temp. | -40°С to +85°С |
| Humidity | 5% RH – 95% RH non condensing |
| Frequency | UHF: US(902-928MHZ), EU(865-868MHZ); HF: 13.56MHZ |
| Protocol | ISO18000-6C（EPC global UHF Class 1 Gen 2 ); ISO/IEC 14443A-3 |
| IC type | EM4423 |
| Memory | 7 bytes UID (NFC), 96bit TID (EPC); 1920 bit USER data (NFC), 160 bit USER data (EPC); 128 bit EPC |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read range(Fix Reader): | Up to 500cm, US ( 902-928MHZ ), on metal; Up to 400cm, EU ( 865-868MHZ ), on metal; |
| Read range(Handheld Reader): | UHF 150cm,(on metal),HF 1cm,(on metal and off-metal), US (902-928MHZ); UHF 130cm,(on metal),HF 1cm,(on metal and off-metal), EU (865-868MHZ). |
