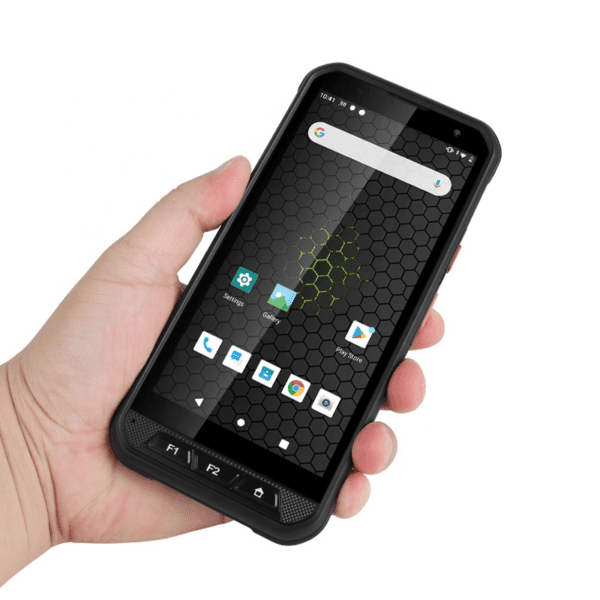

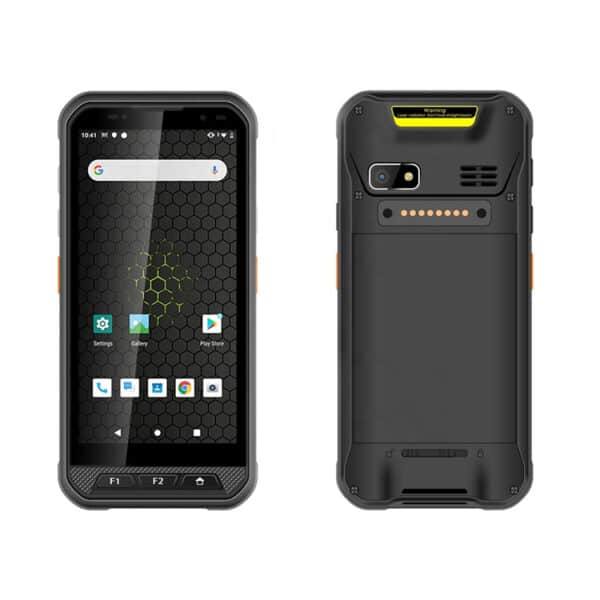

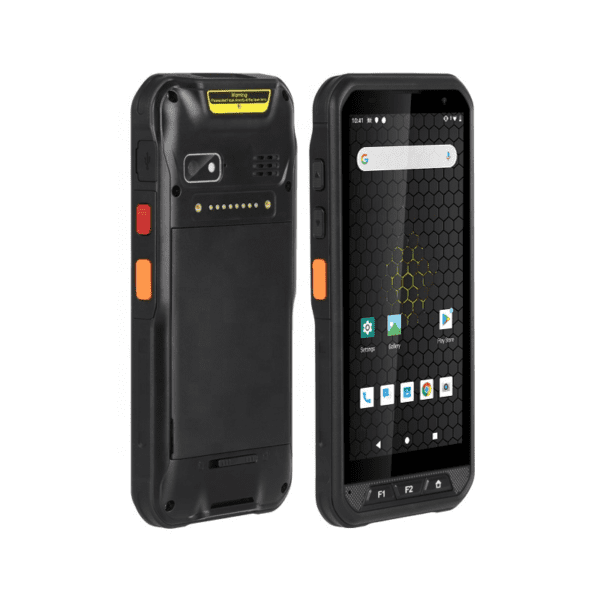

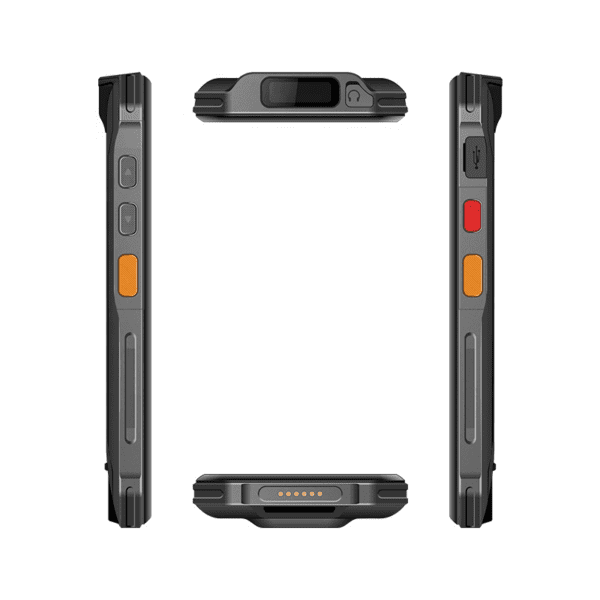

M790 PDA Android 12 Mobile Computer

Features:

M790 is popular android mobile computer, with octa-core processor, Android 12.0 , GMS certified, Zebra 4710 scanner engine, supports 1D &2D fast scanning; With pistol grip, cradle/docking station, and wrist strap, M790 PDA is widely used in logistics, warehouse, manufacturing, retail, etc. applications.

GMS Certified
CPU Octa-core 2.5GHz
Zebra 4710 Scanner engine
NFC RFID reader
IP67 Protection class

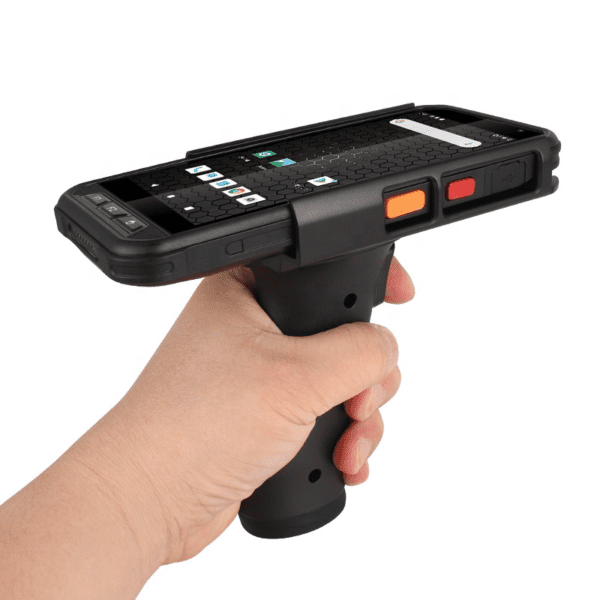

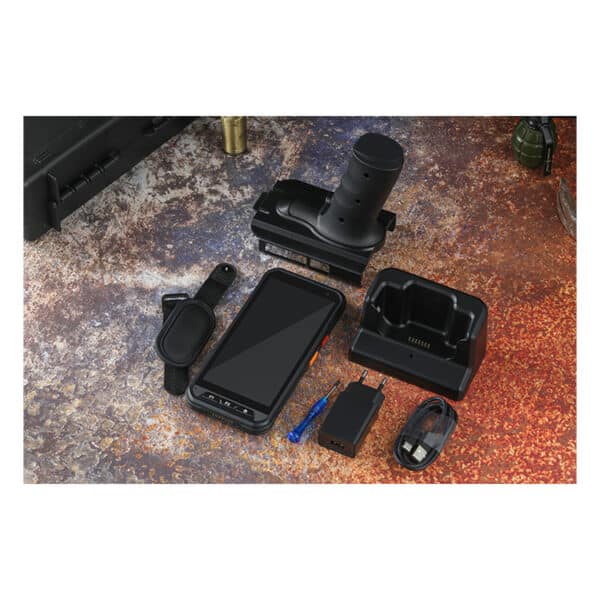

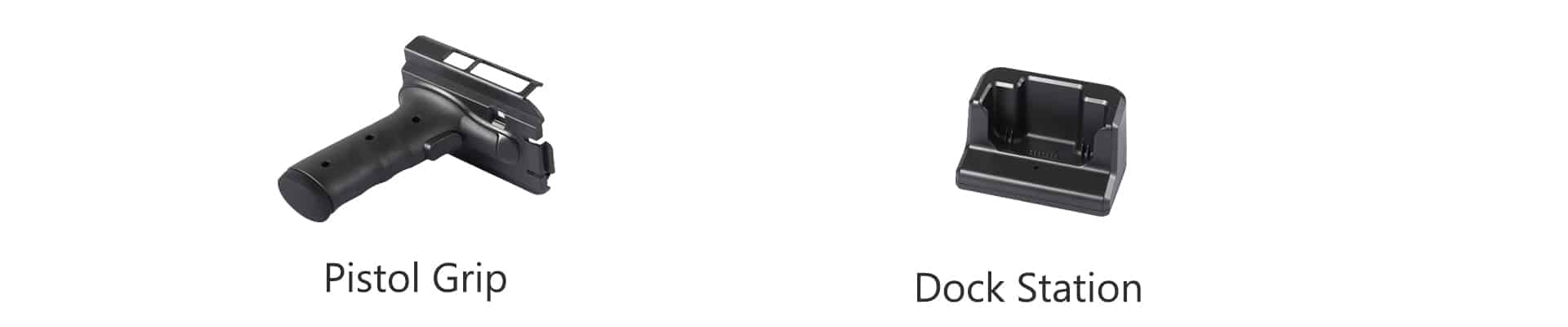

Pistol Grip, Charging Cradle, wrist strap

Parameter:

Physical Characteristics

Dimensions	1738117.5mm
Weight	about 316g (including battery) (N.W.; depends on configuration)
CPU	MTK6765V, Octa-core, 2.3G
RAM+ROM	4G+64GB or 6G+128GB
Display	5.7 inch Multi-touch panel, IPS 1440*720, tempered glass
Colour	Black
Battery	Richargeable, removable, 3.85V, 5000mAh
Camera	Rear 8.0MP with flashlight (Option: Rear: 13/20 MP; Front 5/8 MP)
Interfaces	TYPE-C, support QC, USB2.0, OTG; side charging port; 3.5mm headset; extension: UART reserved
Card slot	Dual micro sim card slots; TF card: max 512GB
Audio	Microphone, noise reduction, speaker, receiver
Keypad	8 keys (power key, 2 * barcode scanning, volume + -, F1, F2, F3)
Sensors	3D accelerator,E-compass,proximtity sensor,Light sensor

Communication

WWAN (Asia, Europe, America)	GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDSCDMA(B34/39)+ FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B)+ TDD(B34/38/39/40/41)
WLAN	Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band, 802.11n/ac
Bluetooth	Bluetooth 5.0
GNSS	GPS/AGPS, GLONASS, BeiDou

Developing Environment

Operating System	Android 12, GMS
SDK	Emagic Software Development Kit
Language	Java

Barcoding

1D & 2D Barcode Scanner	Zebra: SE4710/ Honeywell: 5703/ Newland CM30
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

User Environment

Operating Temp.	-10℃ +50 ℃
Storage Temp.	-20 ℃~+70 ℃
Humidity	5% RH – 95% RH non condensing
Drop Specification	Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP67
ESD	±12 KV air discharge, ±6 KV conductive discharge
