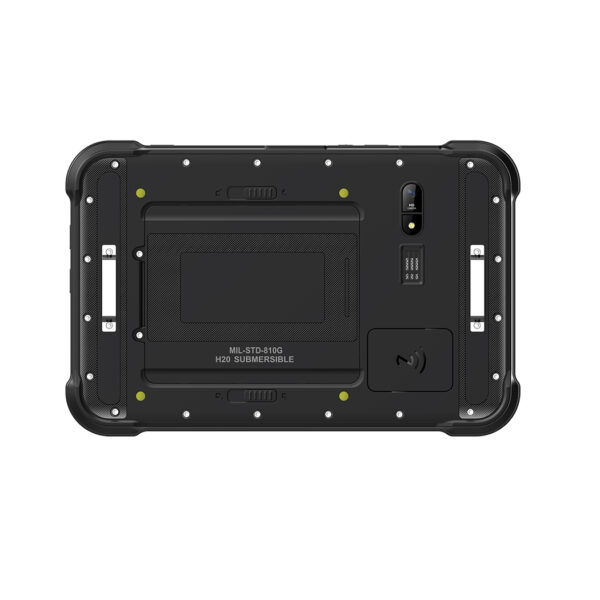

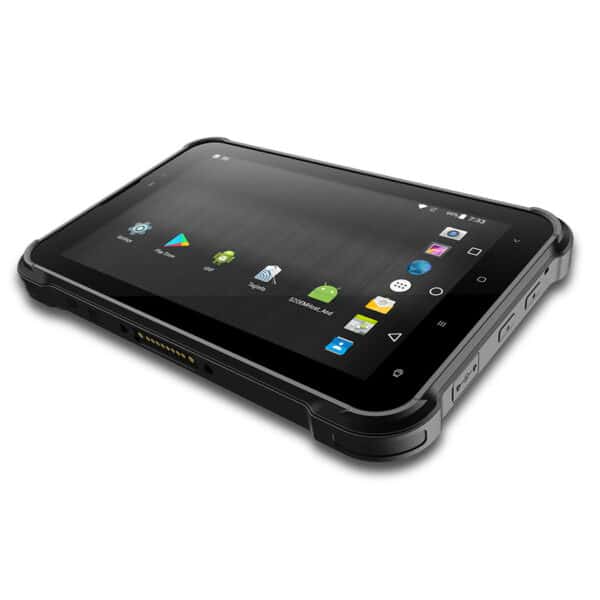

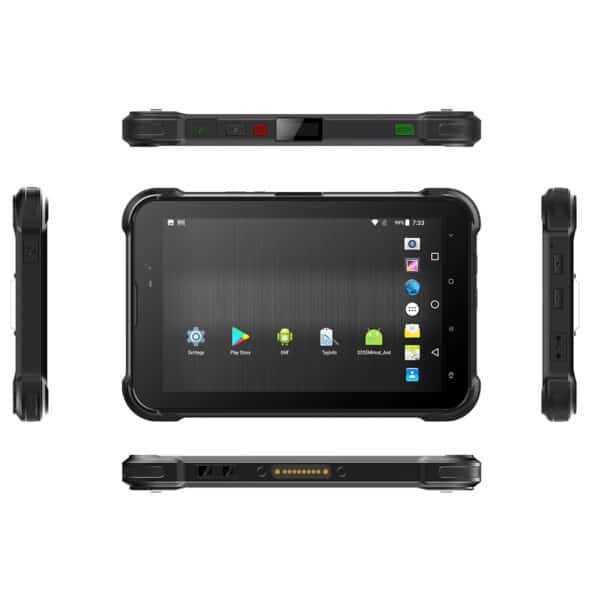

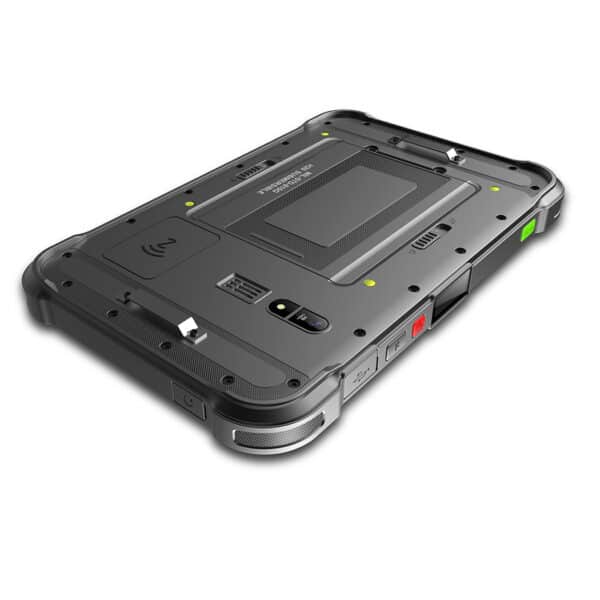

P9008 is a highly rugged industrial tablet, with IP67 protection class, and MIL-STD-810G minitary standard certificate, 8inch size is smart to handheld, support 1D &2D fast scanning; With ocking station accessory options, suitable for logistics, warehouse, manufacturing, retail, etc. applications.
| Dimensions | 225*146*21mm |
| Weight | about 750g (including battery) |
| CPU | MTK6765 |
| RAM+ROM | 4G+64GB or 6G+128GB |
| Display | 8.0 inch Multi-touch panel, IPS 1280*800 (Option: 1000NT) |
| Colour | Black |
| Battery | 3.85V, 8000mAh, removable, rechargeable |
| Camera | Rear 13.0MP with flashlight, front 5MP(Option: Rear: 16/21 MP; Front 8 MP) |
| Interfaces | TYPE-C, support QC, USB 2.0, OTG |
| Card slot | SIM1 slot and SIM2 slot Or (SIM card and T-Flash card), Micro SDcard, up to 128GB |
| Audio | Microphone, speaker, receiver |
| Keypad | 7 (ptt, scanner, power, Customiztion1, 2, volume+, volume-) |
| Sensors | 3D accelerator,E-compass,proximtity sensor,Light sensor |
| WWAN (Asia, Europe, America) | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28; LTE-TDD: B34/B38/B39/B40/B41; WCDMA: B1/B2/B5/B8; GSM: 850/900/1800/1900 |
| WLAN | Support IEE 802.11 a/b/g/n/ac, 2.4G/5.8G dual-band |
| Bluetooth | Bluetooth 5.0 |
| GPS | GPS/AGPS, GLONASS, BeiDou |
| Operating System | Android 12, GMS |
| SDK | Emagic Software Development Kit |
| Language | Java |
| Operating Temp. | -10℃ +50 ℃ |
| Storage Temp. | ’-20 ℃~+60 ℃ |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range; |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP67 |
| ESD | ±12 KV air discharge, ±6 KV conductive discharge |
| NFC | 13.56 MHz; ISO14443A/B, ISO15693 |
| UHF | Chip: Magic RF Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz Protocol: EPC C1 GEN2 / ISO18000-6C Antenna: Circular polarization (-2 dBi) Power: 0 dBm to +27 dBm adjustable Max Read Range: 0~4m Reading speed: Up to 200 tags/sec reading 96-bit EPC |
| Note | Connect pistol grip with built in UHF reader and battery |
| PSAM | Support, ISO 7816, optional |
| Standard | USB cable*1+ adapter*1 + battery*1 |

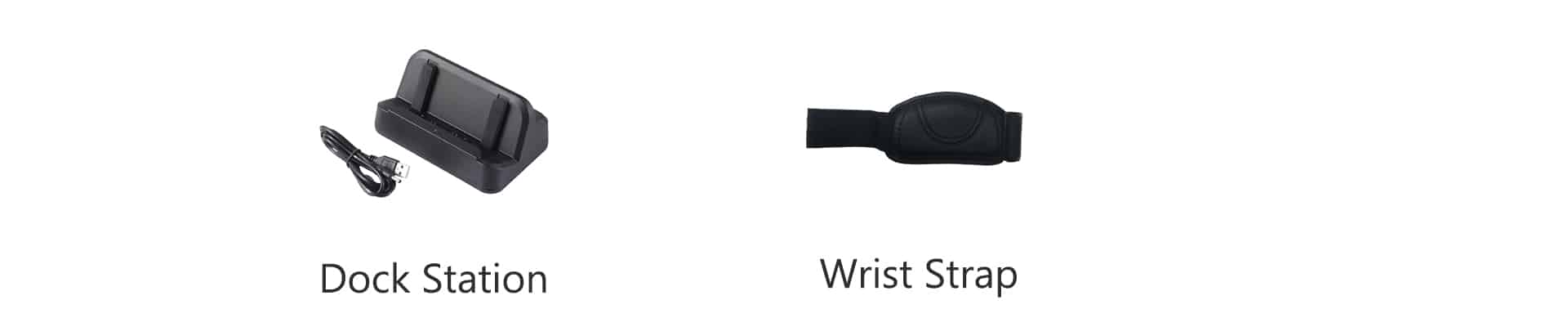

| Optional | charging cradle/ wrist strap |
