RF1471 SPECS--- 4 ports UHF RFID Reader
Features:
IMPINJ E710 chip
RJ-45/RS-232/RS-485/USB/Wiegand ports optional
Supports RSSI and tag data filtering
Supports long range RFID reading
Support antenna detection function
IMPINJ E710 chip
RJ-45/RS-232/RS-485/USB/Wiegand ports optional
Supports RSSI and tag data filtering
Supports long range RFID reading
Support antenna detection function

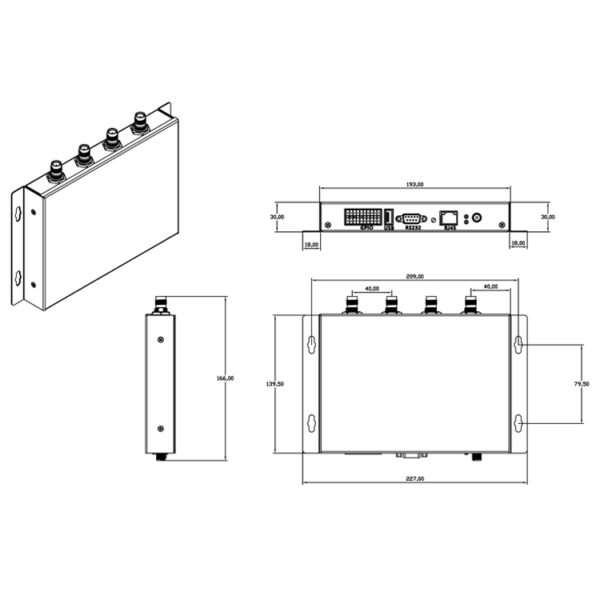

| Dimensions | 209*139.5*30mm |
| Weight | TBC |
| Interfaces | 10/100 Base-T Ethernet interface, 232/485 serial port optional, wiegand, GPIO |

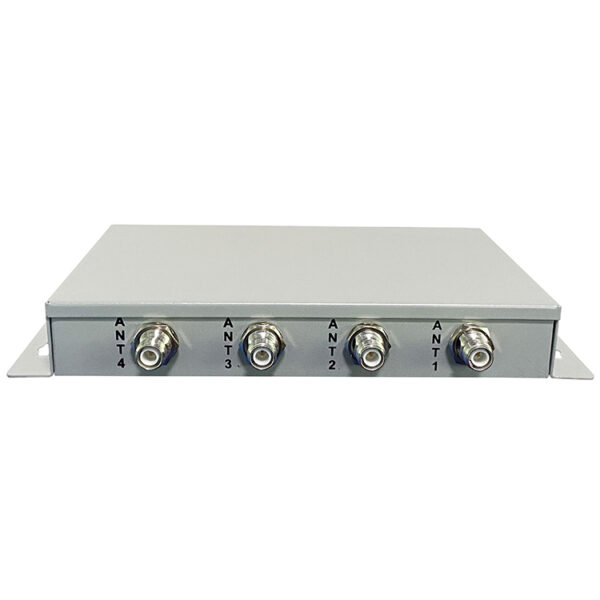

| Antenna ports | 4 TNC reverse ports |
| Indicator | power light, working condition light |
| Power supply | DC 9-15V |
| Communication way | T Ethernet, RFID; optional: RS232 (485) |
| SDK | support |
| Operating Temp. | -20℃ +60 ℃ |
| Storage Temp. | -20 ℃~+70 ℃ |
| Humidity | 5% RH – 95% RH non condensing |
| RFID chip | E710 IMPINJ |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz (customizable) |
| Protocol | ISO18000-6C（EPC global UHF Class 1 Gen 2 ） |
| Read range | ≥10meters (8dbi antenna) |
| Read Speed | ≥400tags/s |
| Power consumption | Standby: 2.5W; Working: 15W (Max) |
| Tag cache | 1000tags |
| Output power | 5-33 dBm（+/-1.0dBm adjustable） |
Not Applicable
| Optional | Adapter |
