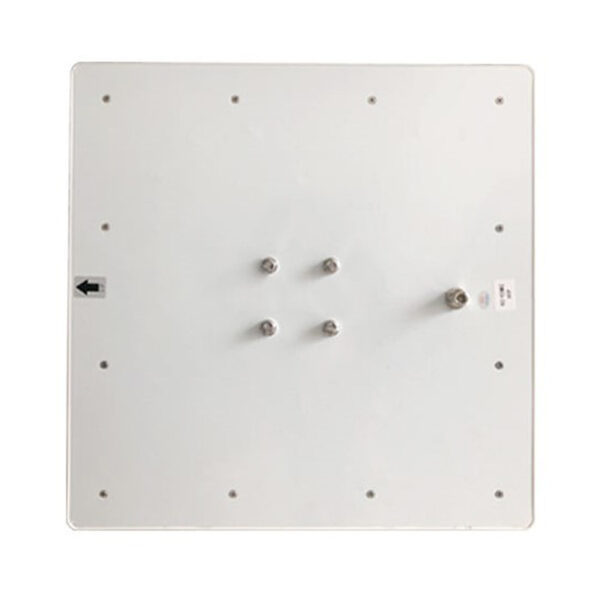

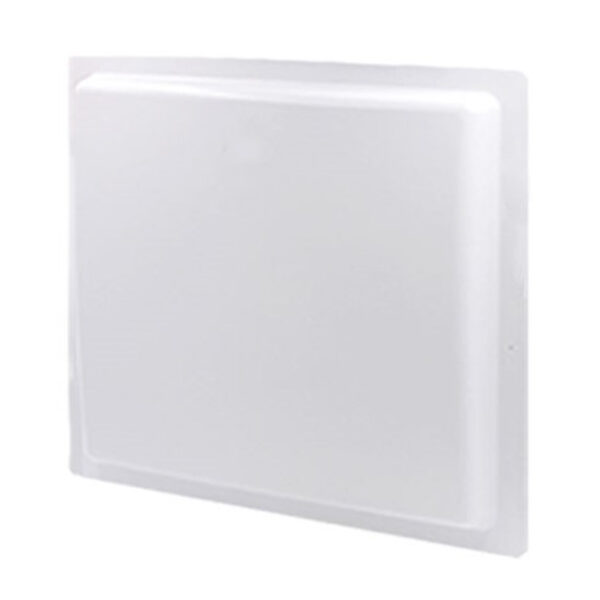

UHF 12dbi RFID Antenna RF-A02
Features:
Circular polarization antenna 12dbi
Long range reading, up to 15m
Wide wave speed, low standing wave, and low axial ratio
Seamlessly compatible with different brand RFID readers
Circular polarization antenna 12dbi
Long range reading, up to 15m
Wide wave speed, low standing wave, and low axial ratio
Seamlessly compatible with different brand RFID readers
| Dimensions | 445*445*40mm |
| Weight | About 3.9kg |
| RFID | RFID |
Not Applicable
| Operating Temp. | -10℃ +70 ℃ |
| Storage Temp. | -20 ℃~+70 ℃ |
| IP rating | IP54/ IP65 |
| Humidity | 5% RH – 95% RH non condensing |
| Frequency | 902-928 MHz |
| Protocol | ISO18000-6C (EPC global UHF Class 1 Gen 2) |
| Antenna | 12dBi |
| polarization mode | Vertical/Horizon polarization |
| Beam width | E-Plane 68°， H-Plane 65° |
| SWR | ≤1.3 |
| input resistance | 50Ω |
Not Applicable
| Optional | Holder for fixing/ feeder cable (customizable length and connector) |
