USB RFID Desktop Reader/Writer RF3101
Features:
Built-in Circular polarization antenna, writing & reading tag easily
ISO18000-6C protocol, UHF RFID reading
USB to connect PC, easy to operate
Cost effective rfid reader, smart size, easy to carry
Built-in Circular polarization antenna, writing & reading tag easily
ISO18000-6C protocol, UHF RFID reading
USB to connect PC, easy to operate
Cost effective rfid reader, smart size, easy to carry

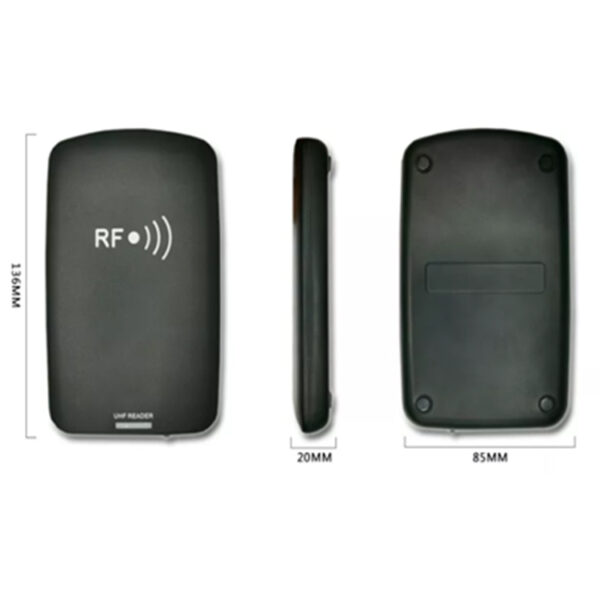

| Dimensions | 130*85*12mm |
| Weight | About 150g |
| System | ARM7 |
| Colour | Black |
| Interfaces | USB port |
| Indicators | Beep or LED light flash |
| Key | power on/off |
| USB | USB 2.0 |
| SDK | support |
| Operating Temp. | -10℃ +70 ℃ |
| Storage Temp. | -20 ℃~+70 ℃ |
| Humidity | 5% RH – 95% RH non condensing |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz (customizable) |
| Protocol | ISO18000-6C（EPC global UHF Class 1 Gen 2 ） |
| Read Range | max 0.2m (related to factors such as transmit power, antenna type, tag type and application environment) |
| Output power | 0-30dBm（adjustable） |
| Antenna | 2dBi circular polarized antenna (built-in PCB antenna) |
| working mode | Fixed/ hopping frequency, optional |
| Power | 5V DC |
| Power Consumption | <1W |
| Working current | 180mA @3.5V (26 dBm Output, 25°C)/ 110mA @3.5V (18 dBm Output, 25°C) |
Not applicable
| Standard | usb cable |
