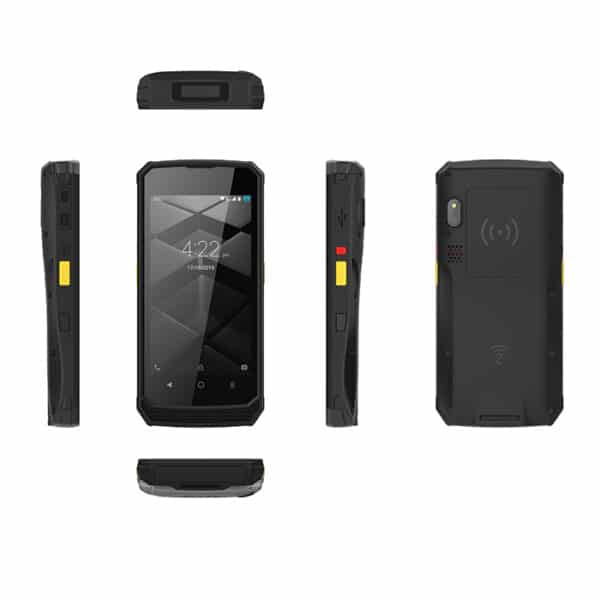

V200 is popular android mobile computer, with octa-core processor, Android 10.0, GMS certified, cost-effective device.
| Dimensions | 165*78*23mm |
| Weight | about 279g (including battery) (N.W.; depends on configuration) |
| CPU | MTK6761V, Quad-core, 2.0G |
| RAM+ROM | 2G+16GB or 4G+64GB |
| Display | 5.0 inch Multi-touch panel, IPS 1280*720, tempered glass |
| Colour | Black |
| Battery | Richargeable, removable, 3.85V, 3900mAh (Option: built-in backup battery 500mAh) |
| Camera | Rear 8.0MP with flashlight (Option: Rear: 13/16 MP; Front 5/8 MP) |
| Interfaces | TYPE-C, support USB2.0; 3.5mm headset; OTG |
| Card slot | Dual micro sim card slots; TF card: max 128GB |
| Audio | Microphone, noise reduction, speaker, receiver |
| Keypad | 6 keys (power key, 2 * barcode scanning, volume + -, custom keys) |
| Sensors | 3D accelerator,E-compass,proximtity sensor,Light sensor |
| WWAN (Asia, Europe, America) | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28; LTE-TDD: B34/B38/B39/B40/B41; WCDMA:B1/B2/B5/B8; GSM: 850/900/1800/1900 |
| WLAN | Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band |
| Bluetooth | Bluetooth4.0+EDR; Support SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP |
| GNSS | GPS, GLONASS, BeiDou |
| Operating System | Android 10, GMS |
| SDK | Emagic Software Development Kit |
| Language | Java |
| Operating Temp. | -10℃ +50 ℃ |
| Storage Temp. | -20 ℃~+70 ℃ |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range; |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP55 |
| ESD | ±12 KV air discharge, ±6 KV conductive discharge |
| NFC | 13.56 MHz; ISO14443A/B, ISO15693 (Note: Optional) |
| LF | 125/134.2KHz FDX-B and HDX according to ISO/IEC11784/5 |
| UHF | Chip: Magic RF Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz Protocol: EPC C1 GEN2 / ISO18000-6C Antenna: Circular polarization (-2 dBi) Power: 18 dBm to +26 dBm adjustable Max Read Range: 0~4m Reading speed: Up to 200 tags/sec reading 96-bit EPC |
| Backup battery | Optional, built-in device, support PDA working when main battery is removed |
| PSAM | Optional, support |

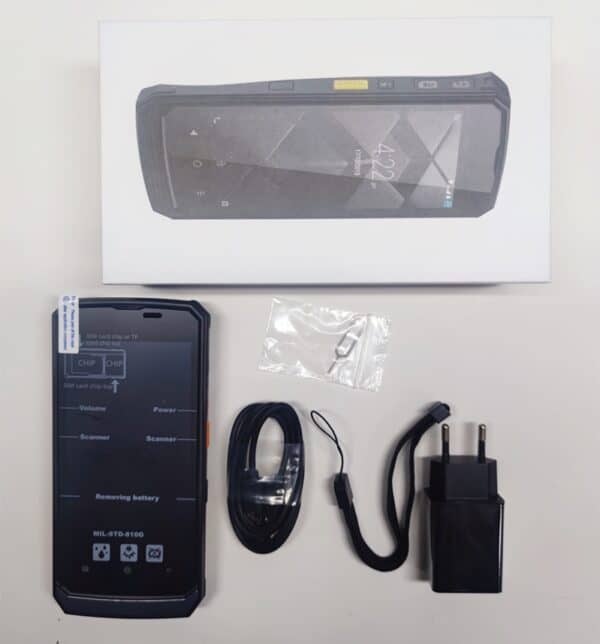

| Standard | USB cable*1+ adapter*1 + pin*1 |

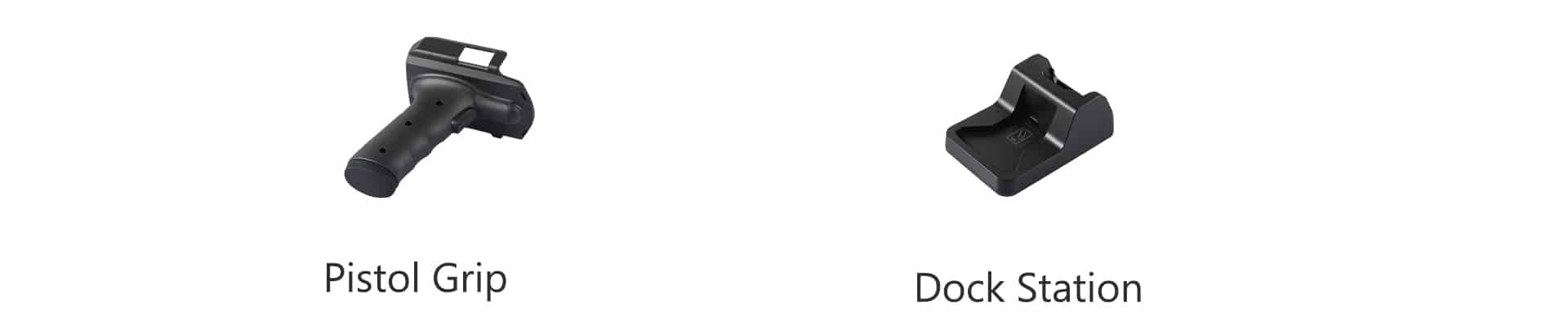

| Optional | pistol grip/ charging cradle |
