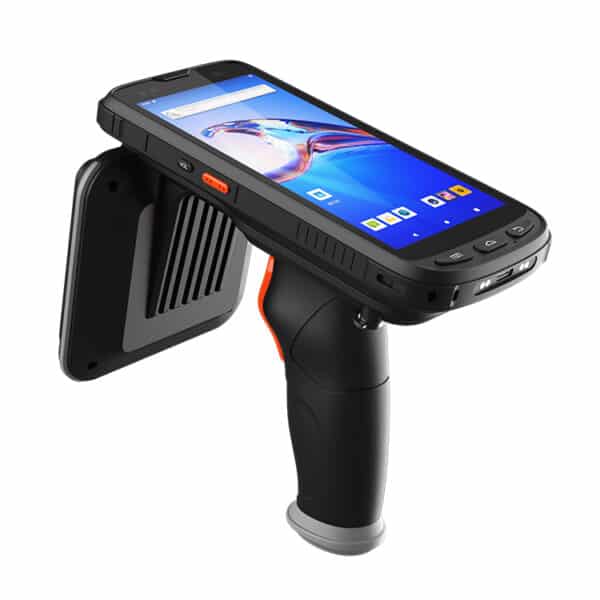

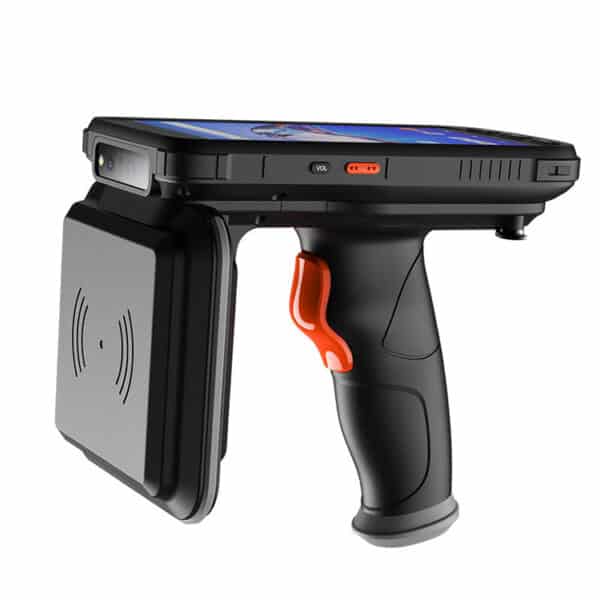

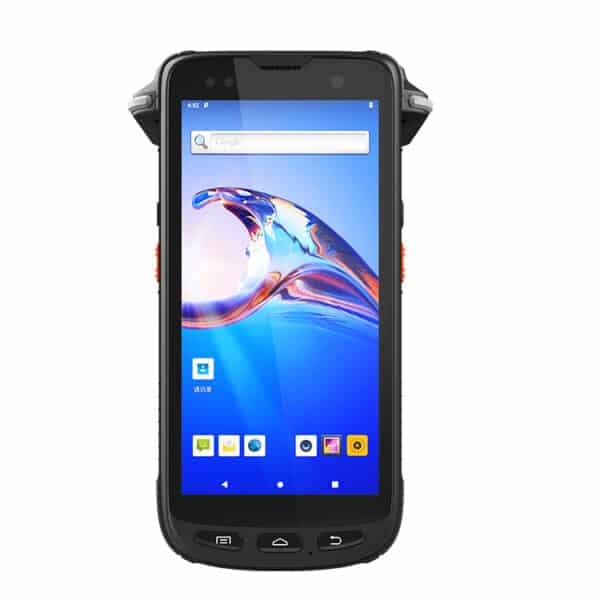

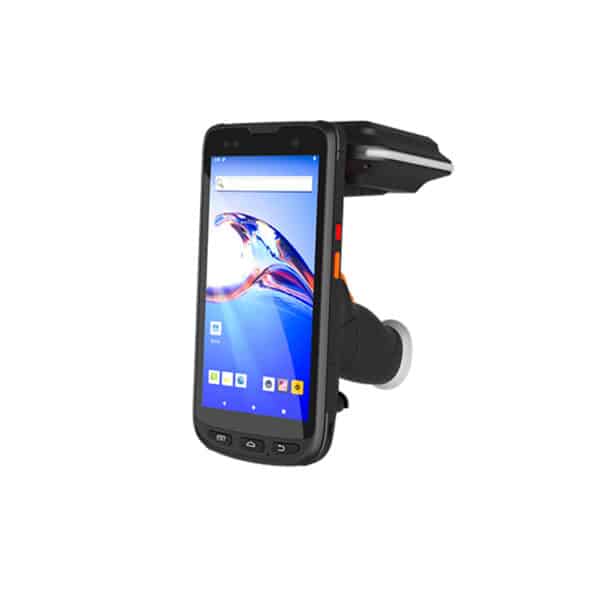

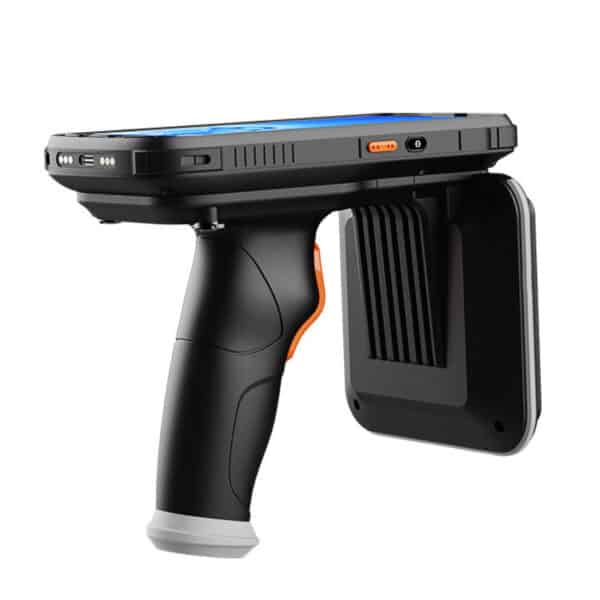

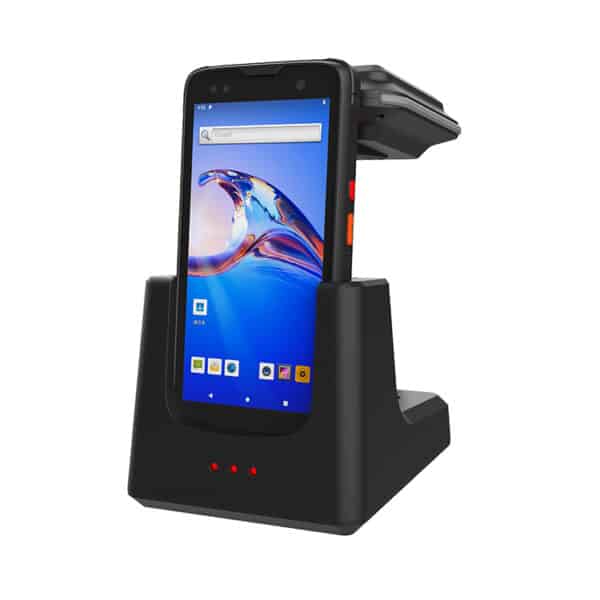

X6 UHF RFID Reader PDA Android 10.0

Features:

Industrial and Humanized Hardware Design

Industrial & humanized keypad design and tough 5.5 inch Gorilla Glass, touch screen together with high resolution of 720*1440 display shall match high standards in logistics, express and retail industry.

High Speed Octa-core CPU, large memory Android 10.0 OS, Octa-core CPU

Android OS 10.0 with Google GMS, Octa-core CPU, 2GB RAM/16GB ROM or 4GB RAM/64GB ROM, 4G high speed data communication and perfect security guarantee.

Excellent performance in UHF RFID reading

With perfect UHF RFID module and built in antenna the UHF reading distance can be 15-20m (max), with 9000mAh battery, support long working time.

Parameter:

Physical Characteristics

Dimensions	166×79×31±2mm (grip length about 110mm)
Weight	about 650g (including battery) (N.W.; depends on configuration)
CPU	Cortex A73 2.0GHz octa-core
RAM+ROM	4G+64GB or 2G+16GB
Display	Gorilla Glass 5.5 in. TFT-LCD, (720×1440) touch screen with backlight
Colour	Black
Battery	Richargeable, removable, 3.8V 9000mAh Li-ion battery
Camera	Rear 13MP AF, high light LED flash, Front 5MP camera
Interfaces	USB-Type C, other slots: 1 PSAM, 1 SIM, 1 TF
Audio	Microphone, noise reduction, speaker, receiver
Keypad	volume, power, grip , function button, home, return button
Sensors	3D accelerator,E-compass,proximtity sensor,Light sensor

Communication

WWAN	TDD-LTE Band B38, B39, B40, B41 FDD-LTE Band B1, B2, B3, B4, B7, B17, B20 WCDMA (850/1900/2100) GSM/GPRS/Edge (850/900/1800/1900)
WLAN	Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band
Bluetooth	BT4.2 BLE
GNSS	GPS/AGPS, GLONASS, BeiDou

Developing Environment

Operating System	Android 10.0, GMS
SDK	Emagic Software Development Kit
Language	Java

Barcoding

1D & 2D Barcode Scanner	Zebra: SE4710
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

User Environment

Operating Temp.	-10℃ +50 ℃
Storage Temp.	-20 ℃~+70 ℃
Humidity	5% RH – 95% RH non condensing
Drop Specification	Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65
ESD	±12 KV air discharge, ±6 KV conductive discharge

RFID

NFC	13.56 MHz; ISO14443A/B, ISO15693
RFID （UHF）	Protocol standard: EPC G2/ISO 18000-6C;
	Working frequency: 860-960MHz
	Antenna parameters: Circular antenna built-in (3dBi)
	Power: working voltage 3.6V-5V, RF output 5dBm to 30 or 33dbm
	Standby power consumption is about 0.25W, maximum 7.5W (typical 7W);
	Reading distance: 0-20m (depends on environment and tag)
	Multi-tags read rate > 200 tags per second
