Android Mobile Computers

M790 PDA Android 12 Mobile Computer

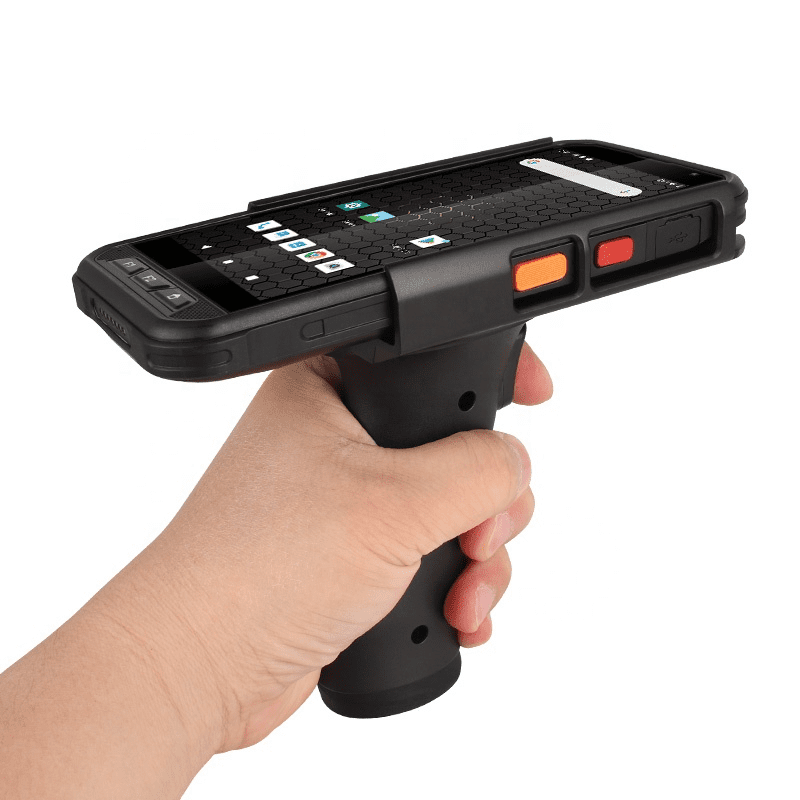

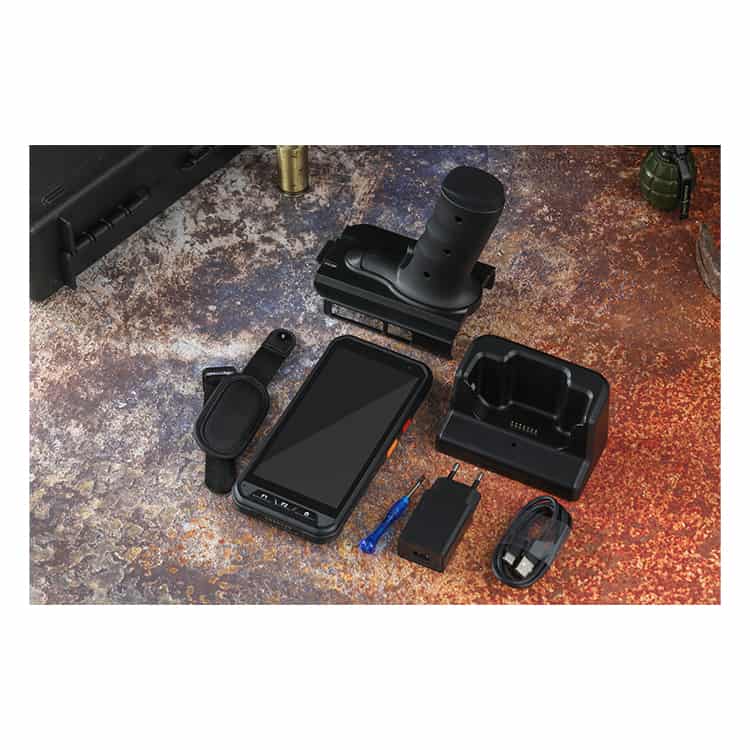

M790 is popular android mobile computer, with octa-core processor, Android 12.0 , GMS certified,  Zebra 4710 scanner engine, supports 1D &2D fast scanning;  With pistol grip, cradle/docking station,  and wrist strap,  M790 PDA is widely used in logistics, warehouse, manufacturing, retail, etc....

Get a Quote View Parameters
M790 PDA Android 12 Mobile Computer
android-PDA-mobile-computer-2
android-PDA-mobile-computer-5
android-PDA-mobile-computer-4
android-PDA-mobile-computer-3
android-PDA-mobile-computer-6
M790 PDA Android 12 Mobile Computer
android-PDA-mobile-computer-2
android-PDA-mobile-computer-5
android-PDA-mobile-computer-4
android-PDA-mobile-computer-3
android-PDA-mobile-computer-6
Download: M790-Emagic-Mobile-computer-PDA

Parameter

Detailed product specifications

Review product parameters, technical tables, communication options, development environment, and supported industrial functions.

Physical Characteristics

Technical information and configuration details.

Dimensions 173*81*17.5mm
Weight about 316g (including battery) (N.W.; depends on configuration)
CPU MTK6765V, Octa-core, 2.3G
RAM+ROM 4G+64GB or 6G+128GB
Display 5.7 inch Multi-touch panel, IPS 1440*720, tempered glass
Colour Black
Battery Richargeable, removable, 3.85V, 5000mAh
Camera Rear 8.0MP with flashlight (Option: Rear: 13/20 MP; Front 5/8 MP)
Interfaces TYPE-C, support QC, USB2.0, OTG; side charging port; 3.5mm headset; extension: UART reserved
Card slot Dual micro sim card slots; TF card: max 512GB
Audio Microphone, noise reduction, speaker, receiver
Keypad 8 keys (power key, 2 * barcode scanning, volume + -, F1, F2, F3)
Sensors 3D accelerator,E-compass,proximtity sensor,Light sensor

Communication

Technical information and configuration details.

WWAN (Asia, Europe, America) GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDSCDMA(B34/39)+
FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B)+
TDD(B34/38/39/40/41)
WLAN Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band, 802.11n/ac
Bluetooth Bluetooth 5.0
GNSS GPS/AGPS, GLONASS, BeiDou

Developing Environment

Technical information and configuration details.

Operating System Android 12, GMS
SDK Emagic Software Development Kit
Language Java

Barcoding

Technical information and configuration details.

1D & 2D Barcode Scanner Zebra: SE4710/ Honeywell: 5703/ Newland CM30
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

User Environment

Technical information and configuration details.

Operating Temp. -10℃ +50 ℃
Storage Temp. -20 ℃~+70 ℃
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP67
ESD ±12 KV air discharge, ±6 KV conductive discharge

RFID

Technical information and configuration details.

NFC 13.56 MHz; ISO14443A/B, ISO15693

Other Functions

Technical information and configuration details.

Qualcomm CPU Support, optional with MOQ

Accessories

Compatible accessories and options

Select optional accessories to build a complete deployment kit for charging, protection, mounting, data collection, and field operation.

Deployment support

Our engineering team can recommend accessories based on your scanning workload, application environment, and lifecycle requirements.

M790-accessorry

Accessory 01

Contact us for compatibility and availability.

Download

M790-Emagic-Mobile-computer-PDA

160 KB

Download File
